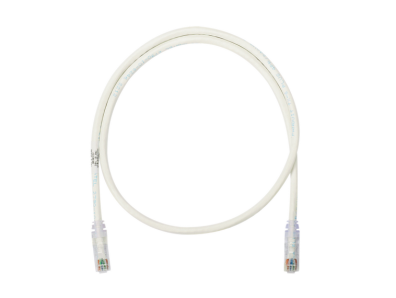

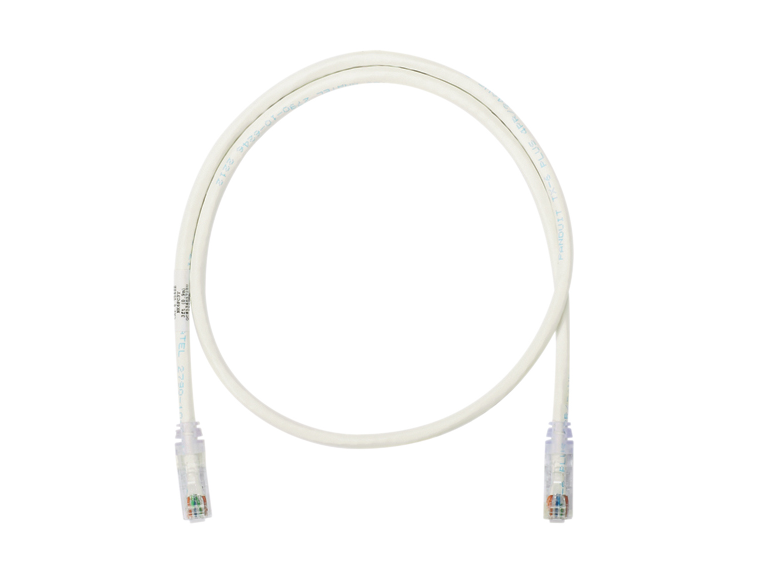

UTP28SP1MGY

CU Patch Crd,Cat 6,SD,1m,GY

Scopri il Prezzo!Registrati o effettua il Login per scoprire la scontistica a te dedicata, riduzioni sul prezzo di listino fino al 70%!
COD: utp28sp1mgy Categorie: , , , ,

UTP28SP1MGY

CU Patch Crd,Cat 6,SD,1m,GY

Informazioni aggiuntive

Peso 0.1000 kg
Categoria Cablaggio

CAT 6
Schermatura

UTP
Metraggio

1 m
Conductor Gauge (AWG) 28
Conductor Gauge (kcmil) NA
Performance Level Category 6
Conductor Type Stranded
Overall Length (In.) NA
Overall Length (ft.) 3.28
Overall Length (m) 1
Overall Length (mm) NA
Nominal Diameter (mm) NA
Wiring Scheme T568B
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature (°F) 167
Minimum Operating Temperature (°C) -10
Minimum Operating Temperature (°F) 14
Maximum Storage Temperature (°C) 70
Maximum Storage Temperature (°F) 158
Minimum Storage Temperature (°C) -40
Minimum Storage Temperature (°F) -40
Boot Color Clear
Color Gray
Sub Brand PanNet
Flammability Rating CM, LSZH-1 (60332-1)
Standards Met IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863.
Product Type Copper Patch Cord
Cable Type U/UTP
Cable Color Gray
Length (ft.) 3.28
Termination End 1 Modular Plug
Termination End 2 Modular Plug
CE Compliant Yes
Nominal Cable Outside Diameter (In.) 0.15
Nominal Cable Outside Diameter (mm) 3.8
Cable Length (ft.) 3.28
Conductor Material Copper
Material Copper
Maximum Installation Temperature (°C) 70
Maximum Installation Temperature (°F) 158
Minimum Installation Temperature (°C) 70
Minimum Installation Temperature (°F) -40
Measurement System Meters (Rest of World)
