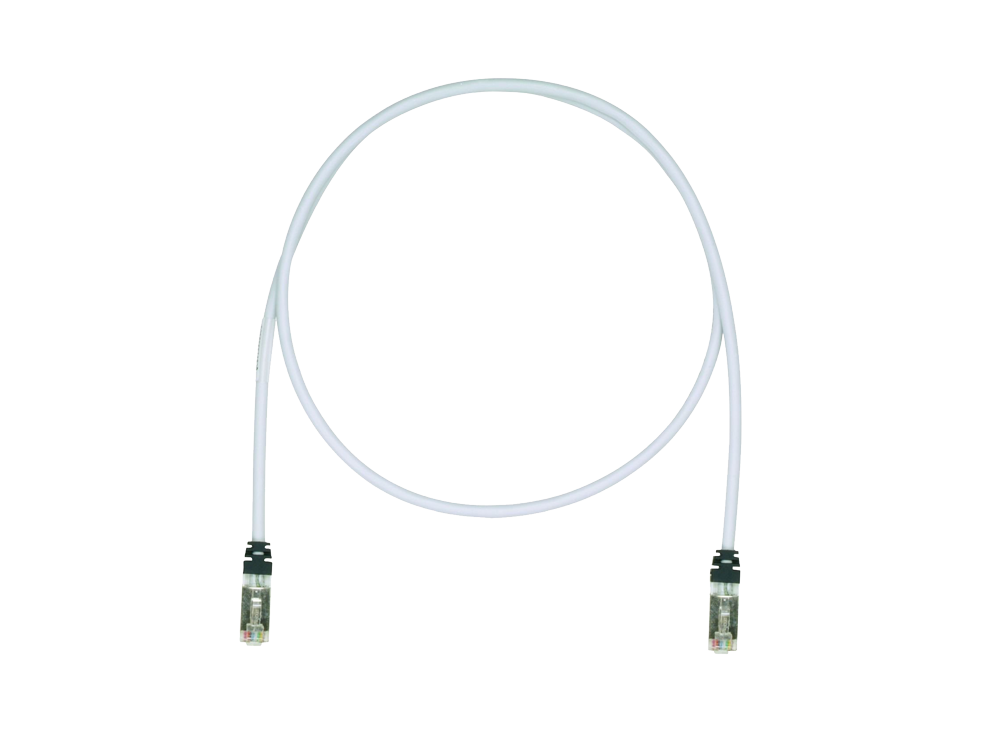

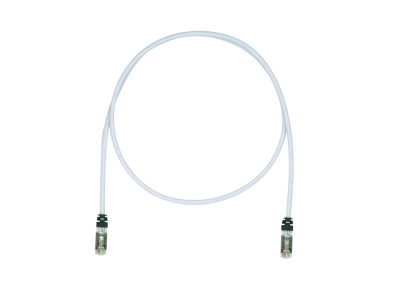

STP6X15MIG
CU Patch Crd,Cat 6A,S/FTP,15m,IG
STP6X15MIG
CU Patch Crd,Cat 6A,S/FTP,15m,IG
Scopri il Prezzo!Registrati o effettua il Login per scoprire la scontistica a te dedicata, riduzioni sul prezzo di listino fino al 70%!
Informazioni aggiuntive
| Peso | 1.5000 kg |
|---|---|
| Categoria Cablaggio | CAT 6A |
| Schermatura | S/FTP |
| Metraggio | 1,5 m |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | NA |
| Performance Level | Category 6A |
| Connector 2 Type | RJ45 8(8) |
| Connector 1 Type | RJ45 8(8) |
| Overall Length (In.) | NA |
| Overall Length (ft.) | 49.21 |
| Overall Length (m) | 15 |
| Overall Length (mm) | NA |
| Nominal Diameter (mm) | NA |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
| Color | International Gray |
| Sub Brand | PanNet |
| Flammability Rating | CM, LSZH-1 (60332-1) |
| Standards Met | ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863. |
| Product Type | Copper Patch Cord |
| Cable Color | International Gray |
| Length (ft.) | 49.21 |
| Termination End 1 | Modular Plug |
| Termination End 2 | Modular Plug |
| CE Compliant | Yes |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Cable Length (ft.) | 49.21 |
| Cable Type | S/FTP |
| Conductor Material | Copper |
| Material | Copper |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | 70 |
| Minimum Installation Temperature (°F) | -40 |
