PFFY6X04WH-HED

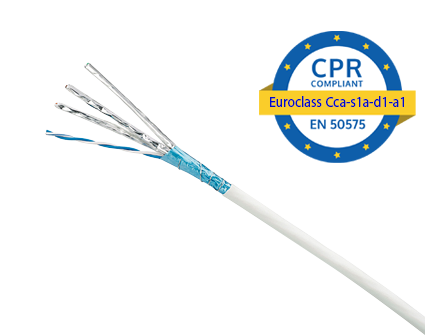

Copper Cable, Cat 6A, 4-Pair, 23 AWG, F/FTP, EuroClass Cca-s1a-d1-a1, White, 500m/1640ft
PFFY6X04WH-HED
Copper Cable, Cat 6A, 4-Pair, 23 AWG, F//FTP, EuroCl Cca-s1a-d1-a1, White, 500 m
Scopri il Prezzo!Registrati o effettua il Login per scoprire la scontistica a te dedicata, riduzioni sul prezzo di listino fino al 70%!
Informazioni aggiuntive
| Peso | 30.2647 kg |
|---|
| Cable Category | Category 6A |
| Cable Construction | F/FTP |
| Overall Length (m) | 500 |
| Conductor Material | Copper |
| Jacket Material | High Density Polyethylene |
| Conductor Gauge (AWG) | 23 AWG |
| Conductor Type | Solid |
| Nominal Diameter (mm) | 1.27 |
| Insulation Diameter (mm) | 1.27 |
| Bend Radius (mm) | 58.4 |
| Number of Pairs | 4 |
| Sub Brand | PanNet |
| Maximum Operating Temperature (°C) | 167 |
| Minimum Operating Temperature (°C) | -20 |
| Maximum Installation Temperature (°C) | 60 |
| Minimum Installation Temperature (°C) | 0 |
| Maximum Installation Tension (N) | 110 |
| Maximum Installation Tension (lb) | 25 |
| Environment | Indoor |
| Package Type | Reel |
| Color | White |
| Environmental Voltage Rating (V) | 80 |
| Standards Met | ROHS |
| Resistance Properties | Flame-Resistant |
| Flammability Rating | LSZH-1 |
| Euroclass Rating | Cca-s1a-d1-a1 |
| CE Compliant | Euroclass Cca-s1a-d1-a1 |
