FZ2ELLNLNSNM002

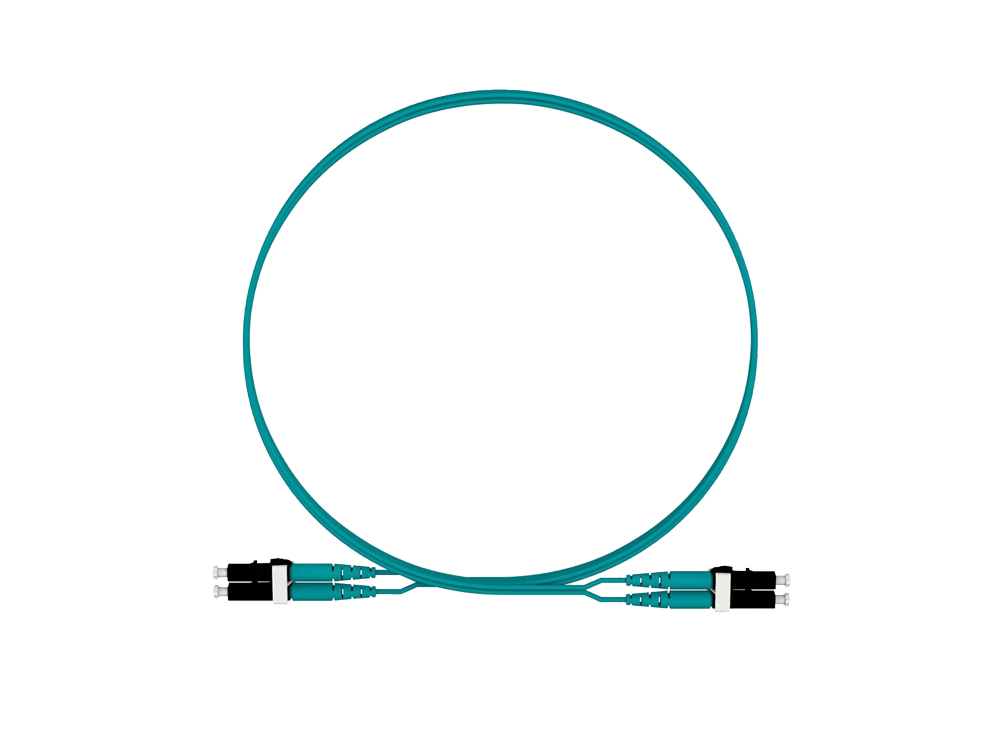

The duplex fiber patch cord is OM4 with a 1.6mm jacket. It is Low Smoke Zero Halogen (LSZH) rated and features LC Duplex connectors. It has standard insertion loss and is 2 meters in length.
FZ2ELLNLNSNM002
2-Fiber,OM4,LCdu-LCdu,PC,LSZH,2M
Scopri il Prezzo!Registrati o effettua il Login per scoprire la scontistica a te dedicata, riduzioni sul prezzo di listino fino al 70%!
Informazioni aggiuntive
| Peso | 0.1000 kg |
|---|---|
| Connettorizzazione | LC-LC |
| Metraggio | 2 m |
| Tipologia di trasmissione | OM4 |
| Fiber Type | OM4 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Length (m) | 2 |
| Fiber Diameter (µm) | 50 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Installation Temperature (°C) | 60 |
| Minimum Installation Temperature (°C) | -10 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Aqua |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Boot Color | Aqua |
| Sub Brand | Opti-Core® |
